Model No.: T-HP20(256*192 resolution)/T-HP 12(120*90 resolution)
Features:

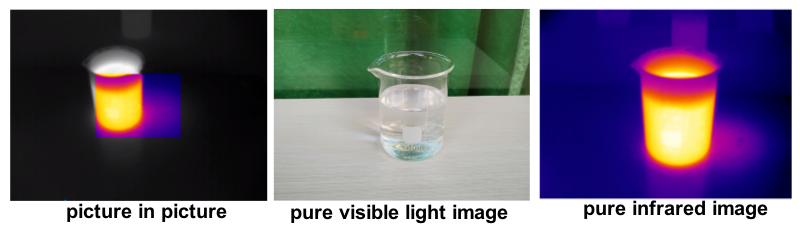

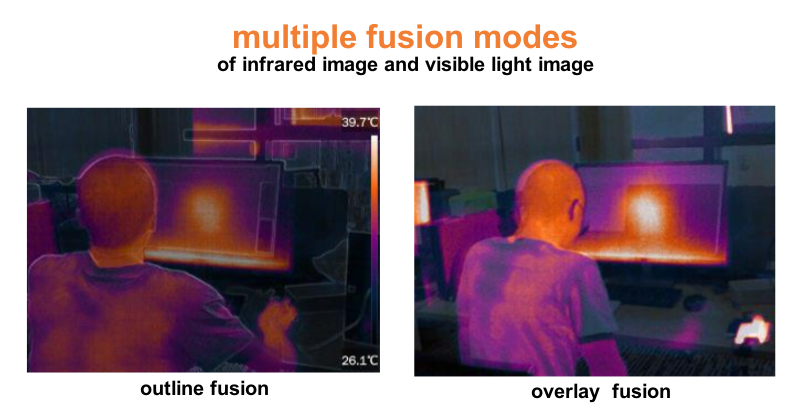

1.Five fusion modes of visible light image and infrared image.Plus the fusion level and relative position are adjustable. (outline fusion, overlay fusion, picture in picture, pure infrared image, pure visible light image);

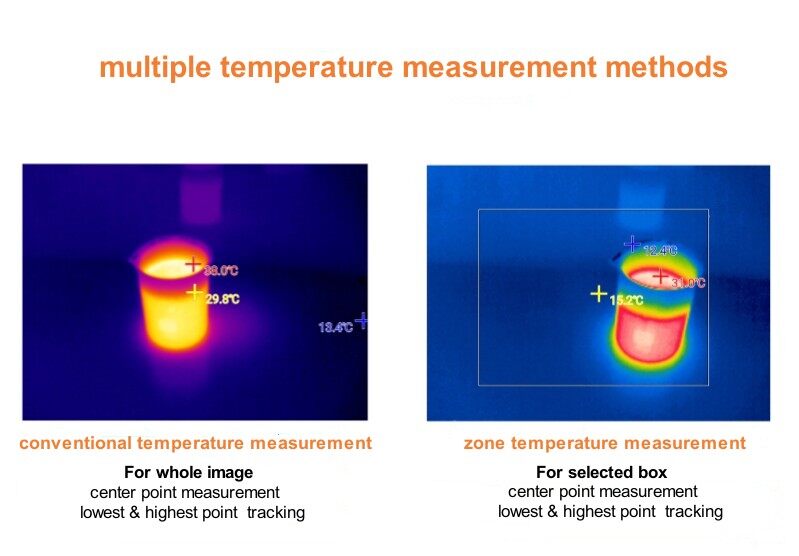

2.Multiple temperature measurement methods(Hottest, coldest, central point, zone temperature measurement);

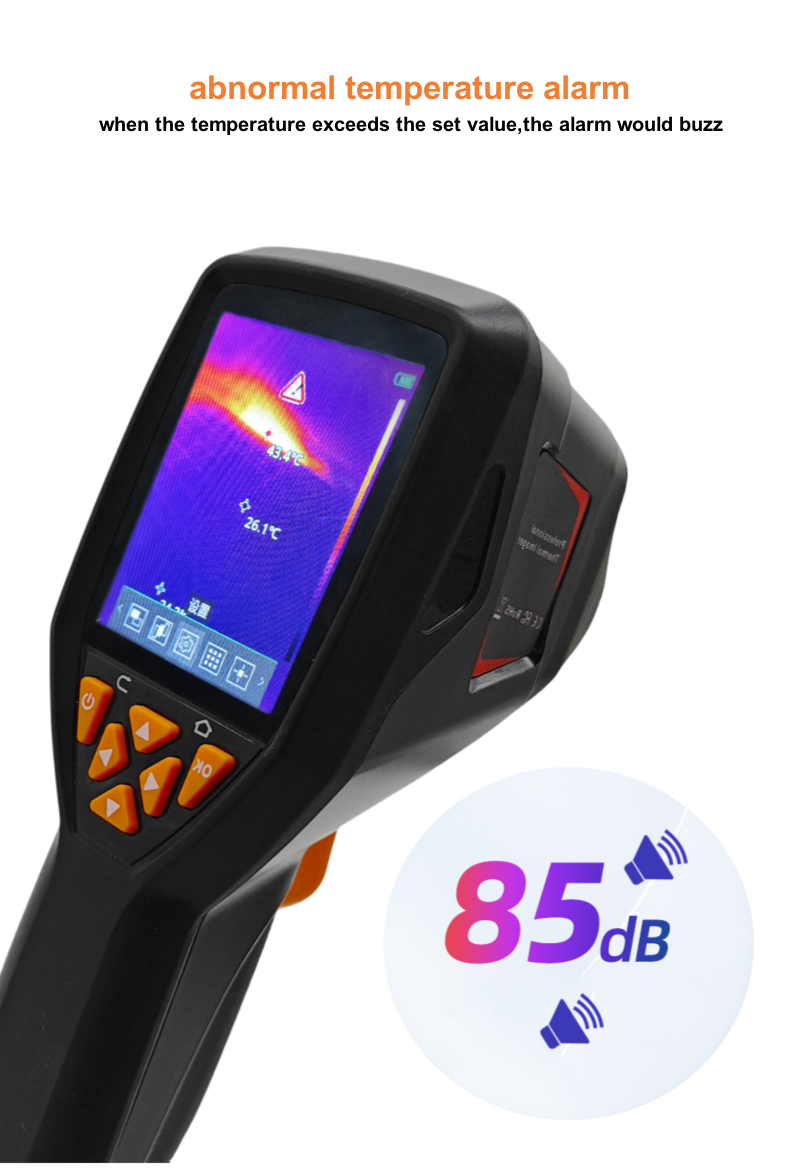

3. Temperature alarm and adjustable threshold of low and high temperature;

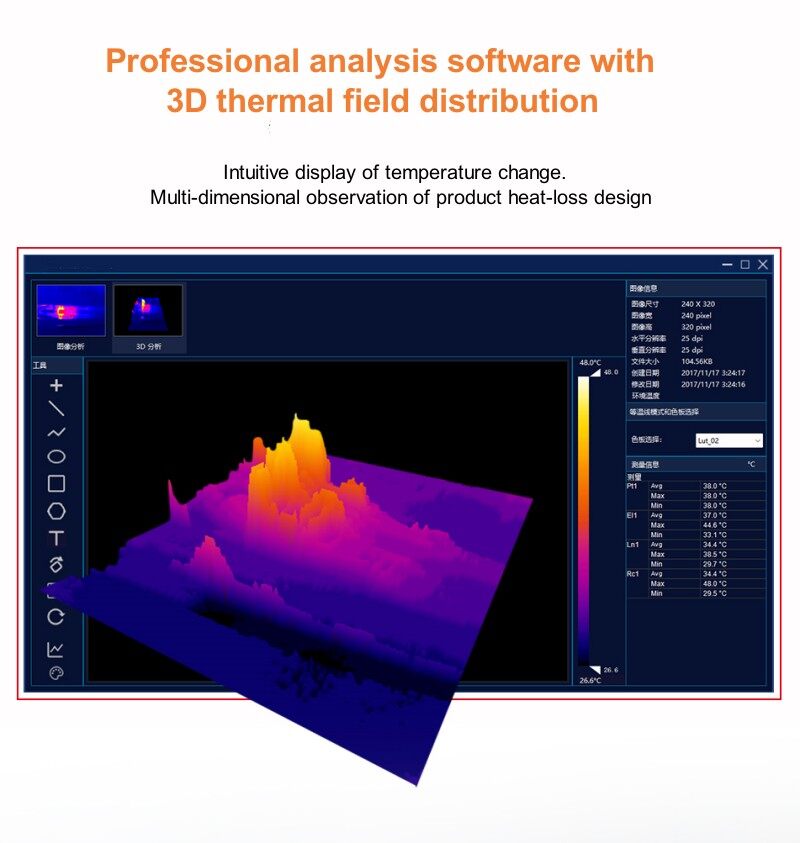

4. Professional analysis software with 3D thermal field distribution and real-time transmit;
5. Video or picture taken function;

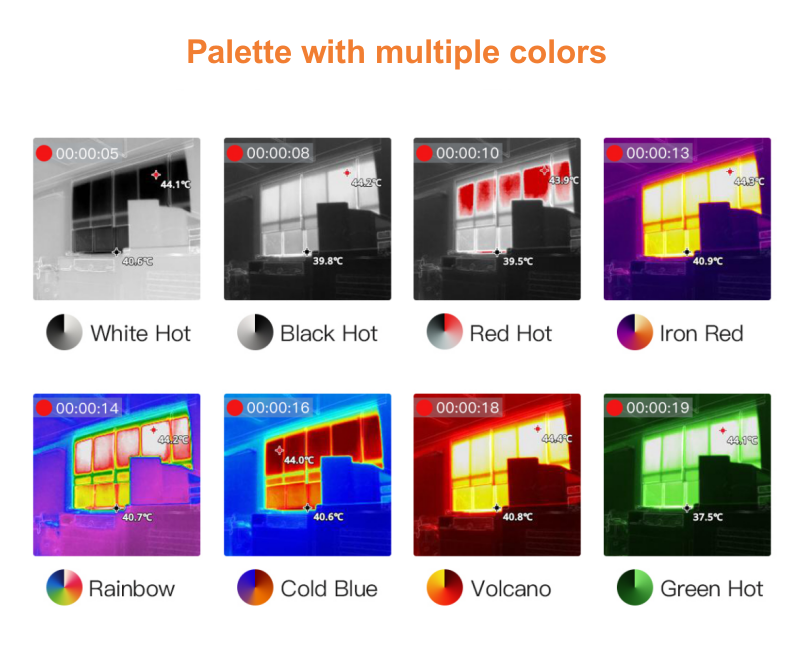

6. Palette with eight colors (Hot black, White Hot, Iron Red, Hot red,Hot green,etc);
7. Multiple 10 languages for option;
8. Emissivity adjustable (0.01-0.99), default is 0.95;
Overview and application:

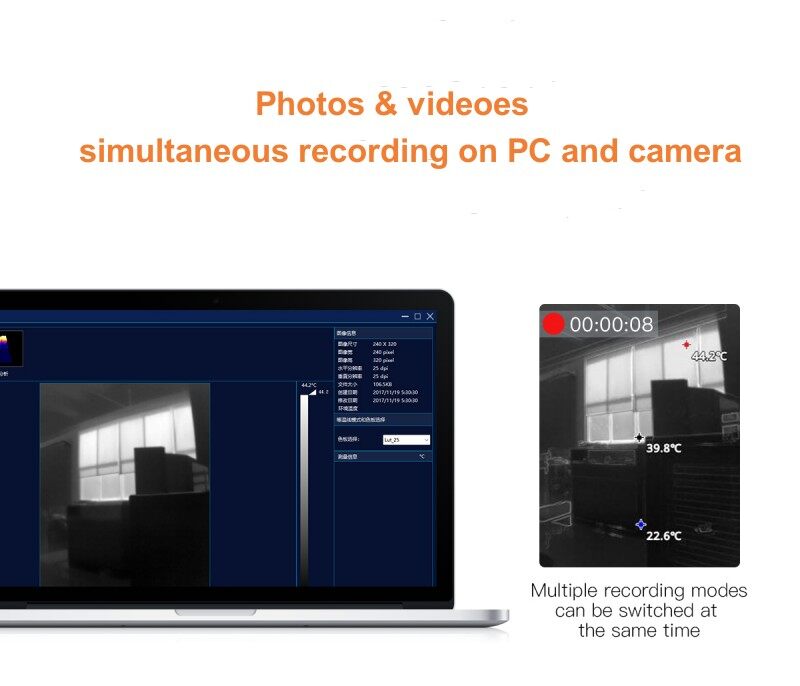

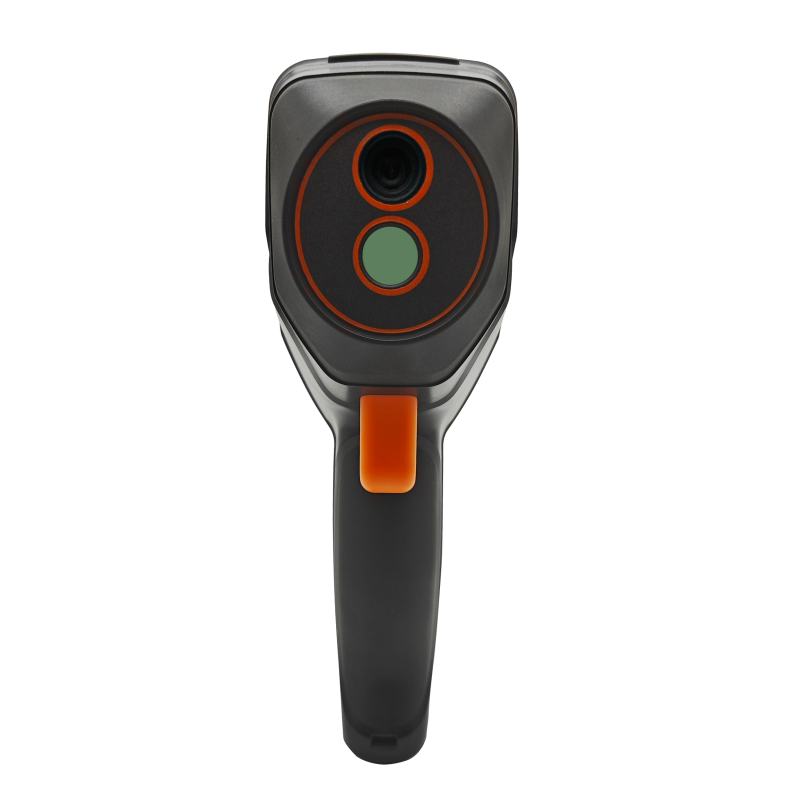

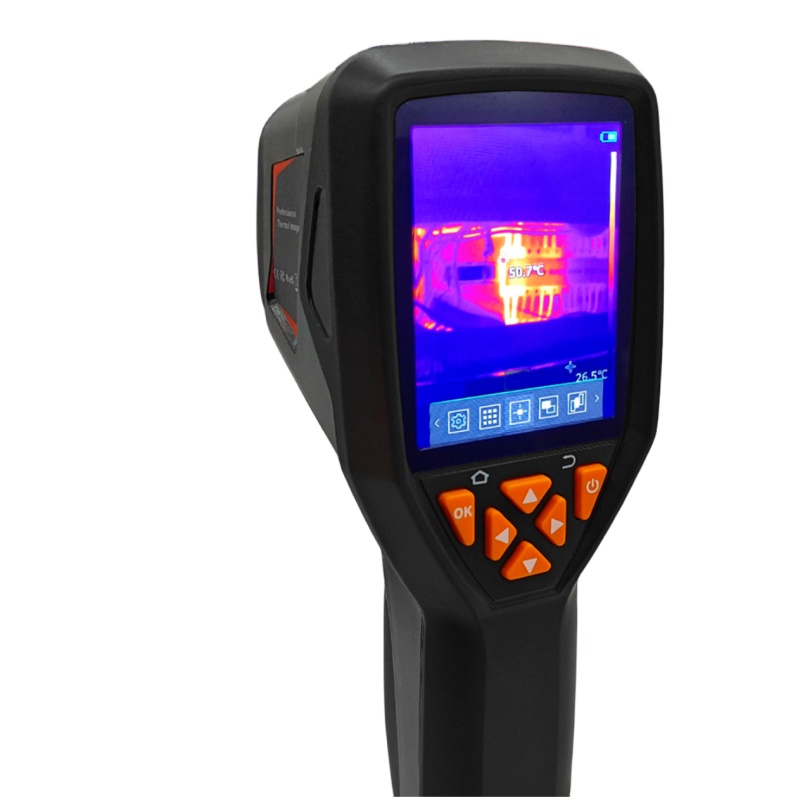

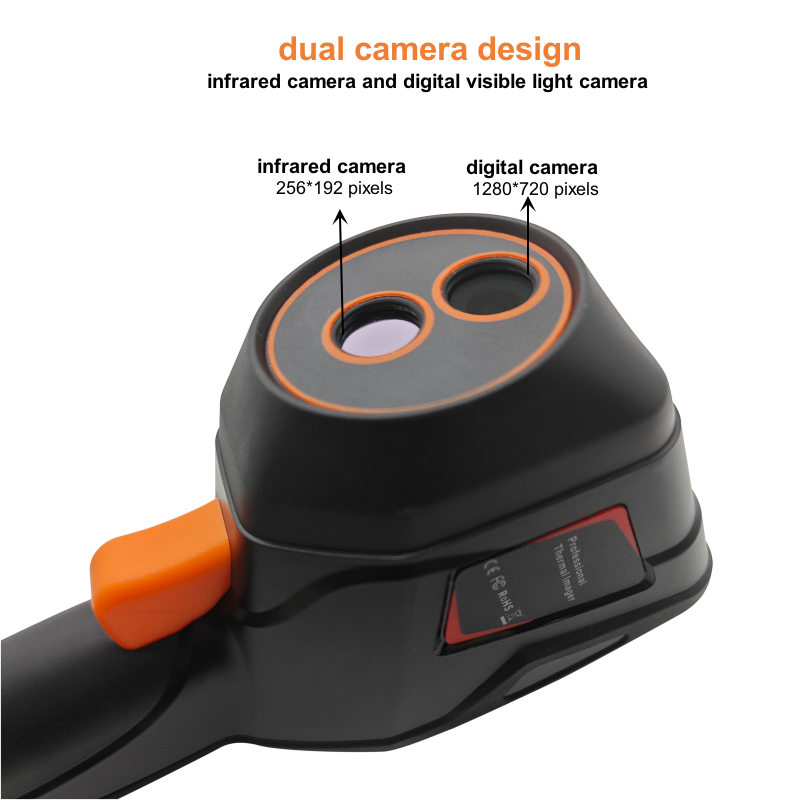

This handheld thermal camera integrate infrared lens and visible light lens in one. The dual- lens design achieves multiple fusion modes of infrared image and visible light image. The fusion level and relative position are adjustable. There is different temperature measurement method including center point measurement,hottest & coldest spot tracking and zone temperature measurement. Plus,there is professional analysis software with function of 3D thermal field distribution,which realize intuitive display of temperature change . Real time image can be transmitted to the software.
All of features above enable it can locate the problem spot quickly and easily. Thus,it’s widely used in locating and diagnosing problems of electrical,mechanical,building and floor heating.
Technical data
|
Infrared Thermal Imaging |
Resolution |
256x192（Model:T-HP20） |
120x90 (Model:T-HP12) |
|
Response Wave Band |
8~14um |
||
|
Frame Rate |
25Hz |
||
|
NETD |
70mK@25℃ |
||
|
Field Angle |
55°X83° |
38°X50° |
|
|
Lens |
3.2mm |
2.3mm F1.1 |
|
|
Measurement Range |
Low Temperature: -20~150℃, High Temperature: 120~400℃ |
||
|
Temperature Measurement Accuracy |
±2°C or reading ±2% |
||
|
Temperature Measurement |
Supporting the highest point, lowest point and central point temperature measurement and area temperature measurement of the full screen |
||
|
Color Board |
Iron red, dazzling white, hot black, iridescent, hot red, high-contrast, hot green, molten lava |
||
|
Visible Light |
Resolution |
720P |
|
|
Field Angle |
55°X83° |
||
|
Image Display |
Screen Size |
2.8” |
|
|
Image Mode |
Edge blending, additive blending, picture in picture, single infrared, single visible light |
||
|
Universal |
Language |
Chinese (Simplified), Chinese (Traditional), English, French, German, Spanish, Dutch, Japanese, Korean, Arabic |
|
|
Connector |
USB Type-C (Supporting charging and data transmission) |
||
|
Battery |
2600mAh lithium battery |
||
|
Operating Time |
It lasts about 4 hours on a full battery charge. |
||
|
Operating Temperature |
-10°C~+60°C |
||
|
Storage Temperature |
-40°C~+85°C |
||
|

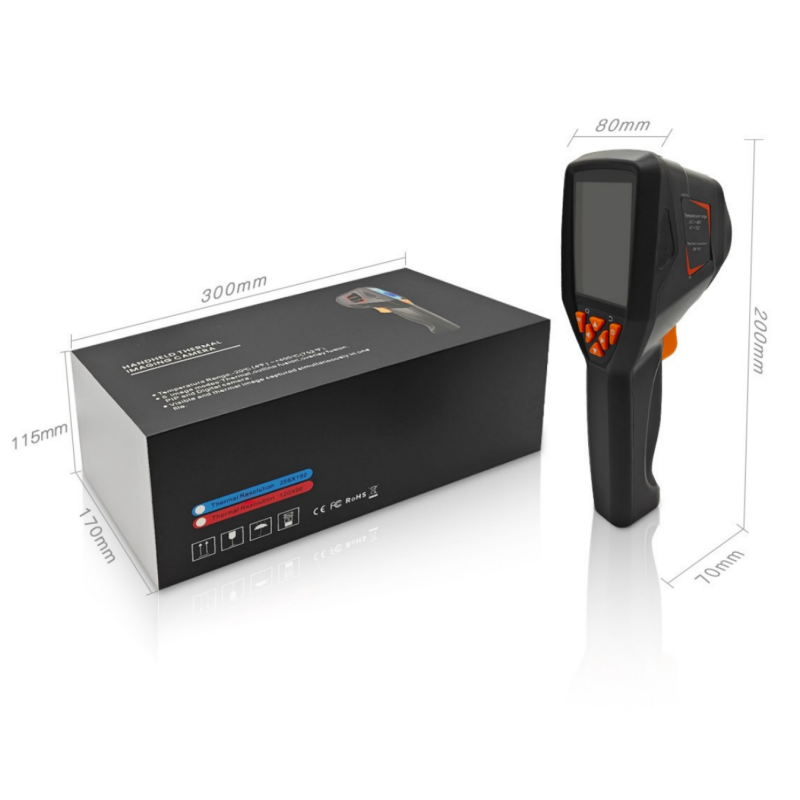

Product Size |
70mmx80mmx200mm |
||
|
Net Weight |
310g |
||
|
Package Size |
115mmx170mmx300mm |
||
|
Storage |
Capacity |
8G built-in memory, can store more than 20,000 pictures |
|
|
Picture Storage Format |
JPG |
||
|
Video Format |
MP4 |
||
|
