Model No.: VE-C36
Features:

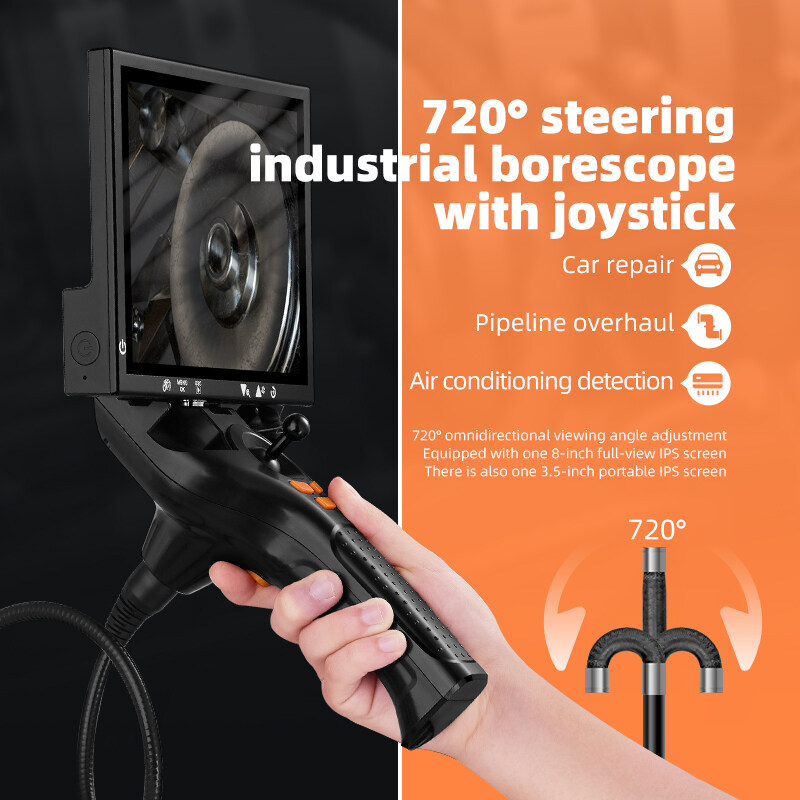

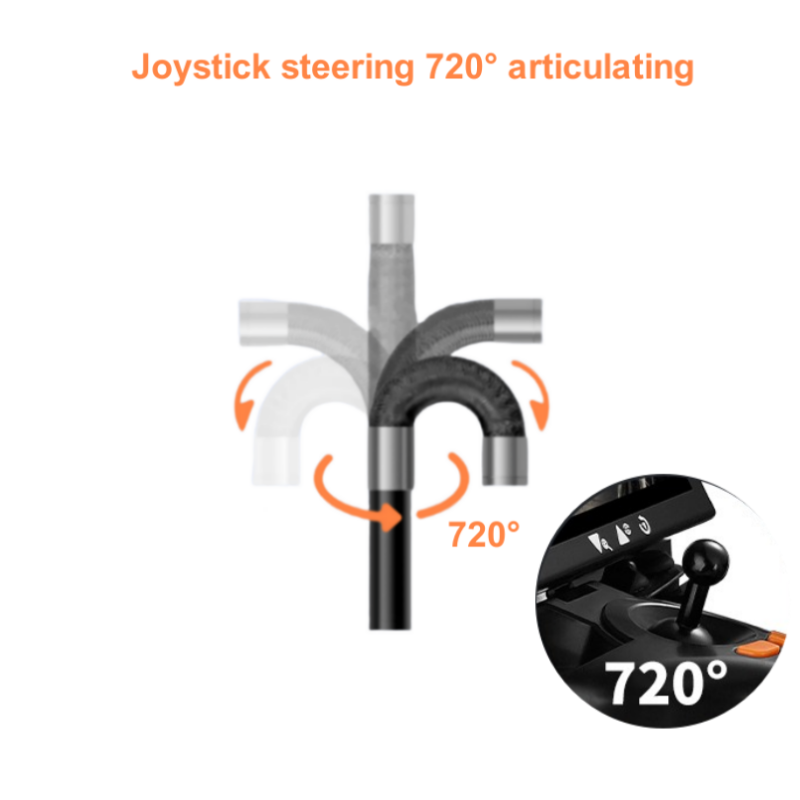

1. Four-way 720° articulating with joystick steering ;
2. Default 8 inch super big LCD screen(3.5 inch one is also available);

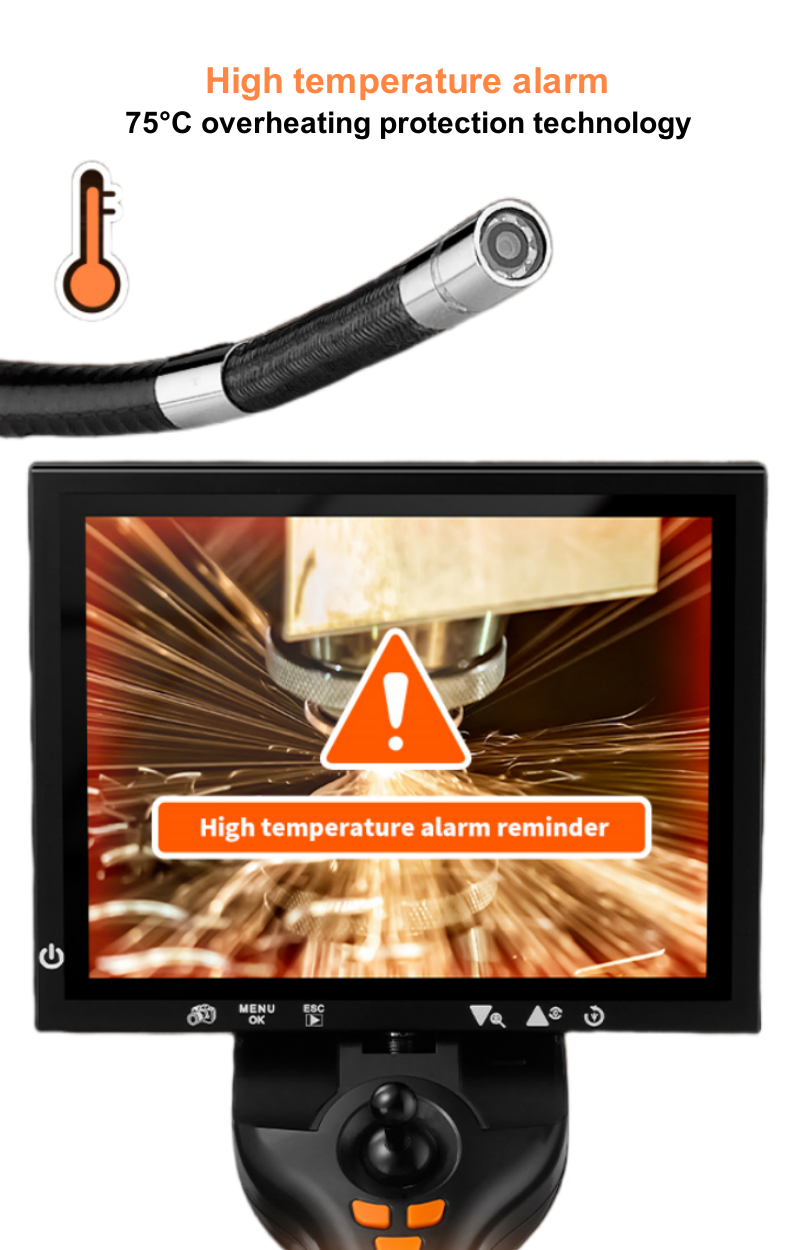

3. Overheating protection technology of 75°C and high temperature alarm;

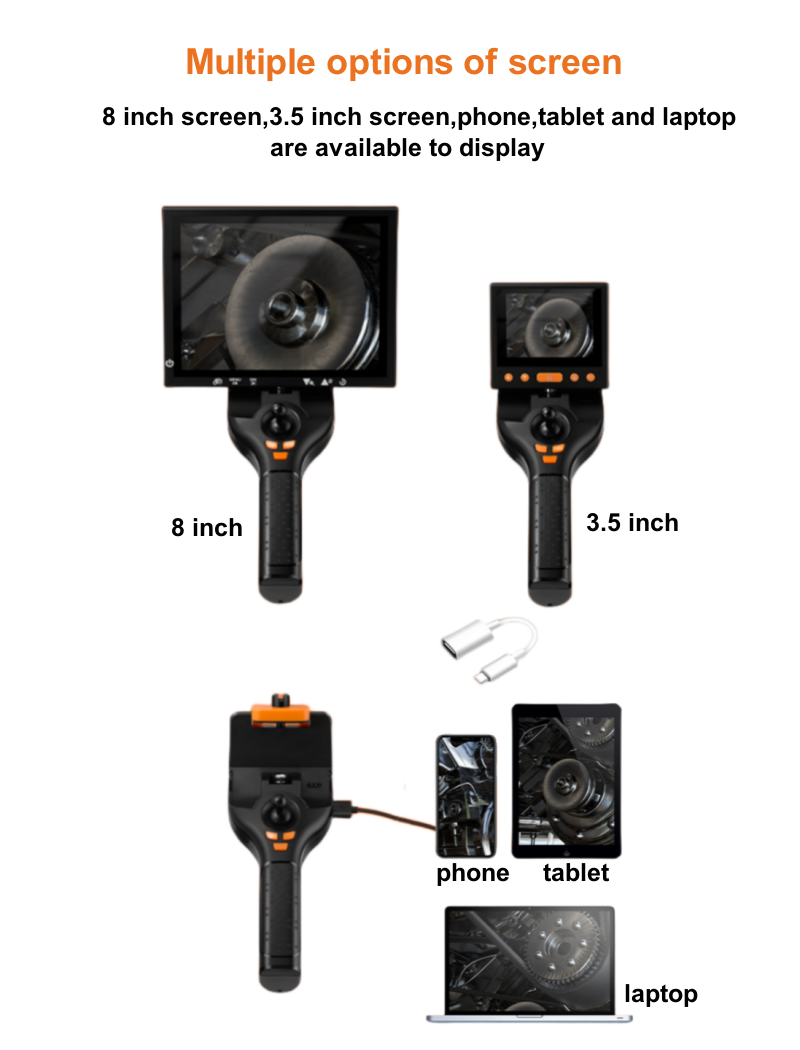

4. Port of 3 in 1 supports phone & computer to be the display instead of equipped screen;
5. No power mode. When connected to phone or PC as display, it’s powered by phone or PC;
6. IP67 Waterproof gooseneck and lens;

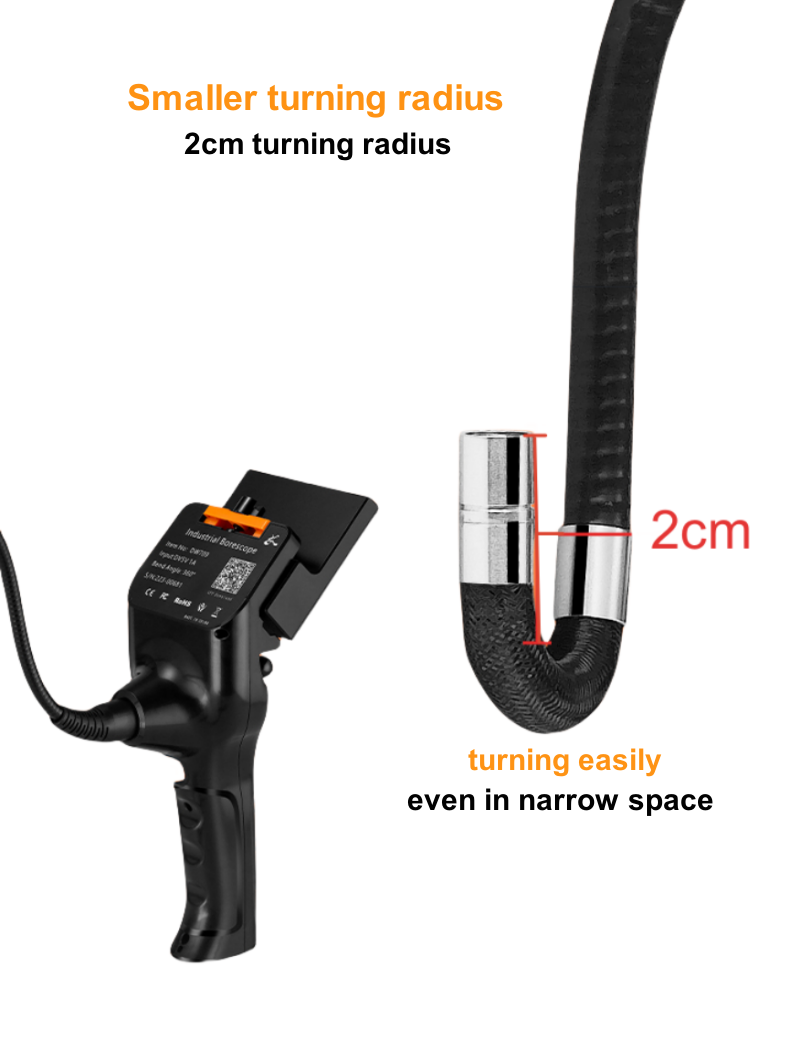

7. Turning part with just 2 cm radius, it can get through narrow part easily;
Overview and application

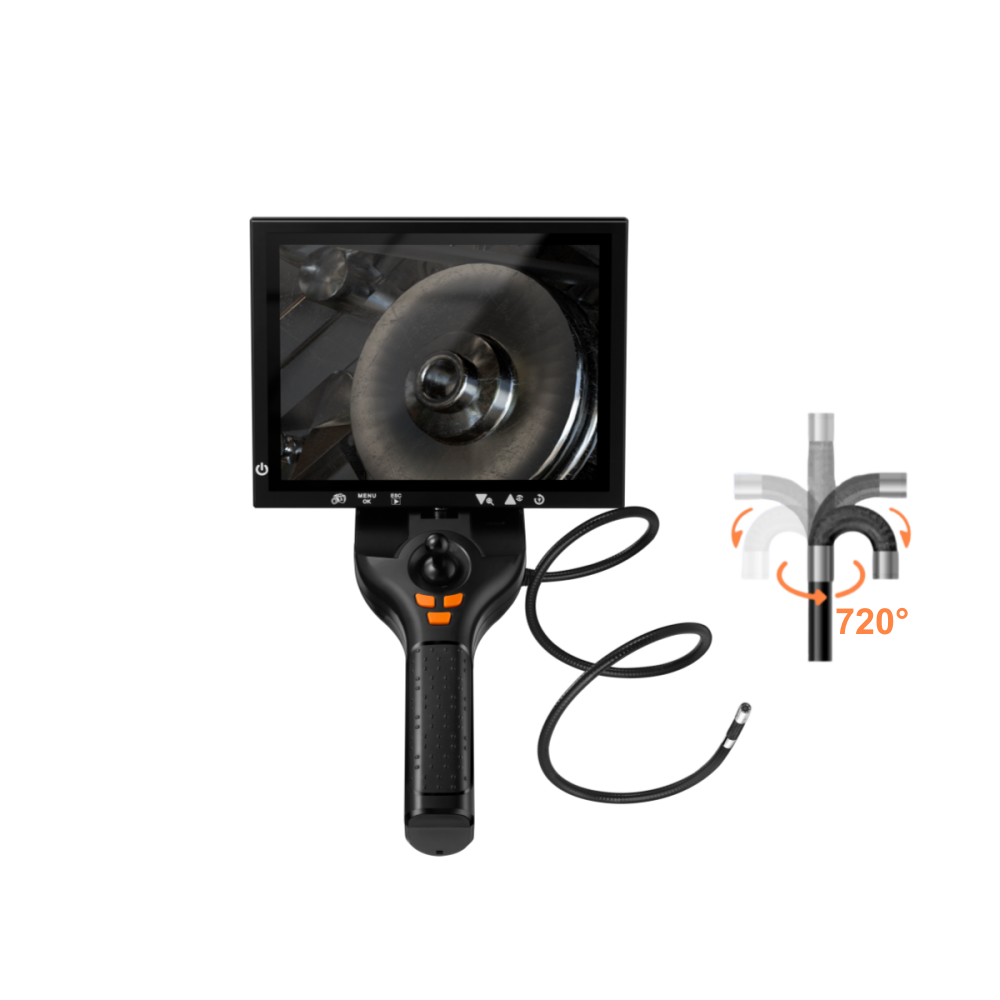

720° four ways articulating lens with joystick steering make there is no blind area. The radius of turning part is just 2cm,which enable the gooseneck to get through narrow part easily. The 8 inch super large LCD screen show you clear and real inspection image(3.5 inch is also available). What’s more,3 in 1 connecting port supports phone & computer to be the display instead of equipped screen.When connected to phone or PC,it’s powered by phone or PC. All of these make this endoscope a nice tools for inspection.

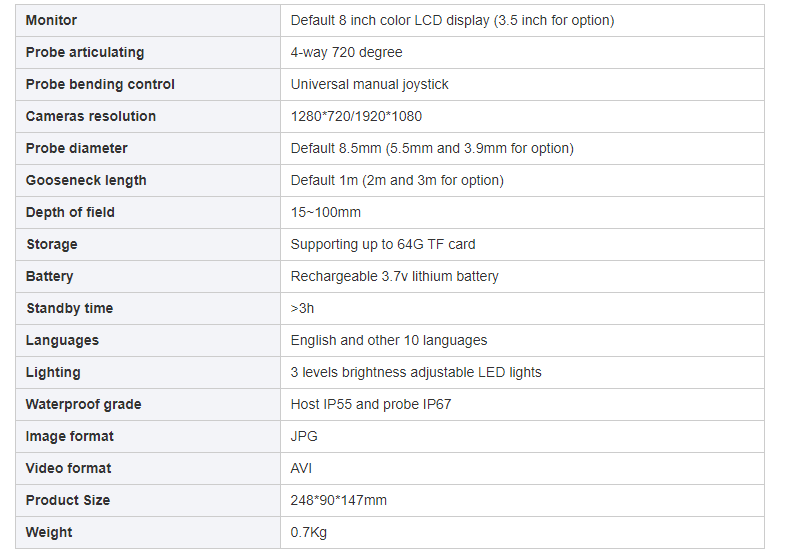

Technical data
Picturs description
|
Monitor |
Default 8 inch color LCD display (3.5 inch for option) |
|
Probe articulating |
4-way 720 degree |
|
Probe bending control |
Universal manual joystick |
|
Cameras resolution |
1280*720/1920*1080 |
|
Probe diameter |
Default 8.5mm (5.5mm and 3.9mm for option) |
|
Gooseneck length |
Default 1m (2m and 3m for option) |
|
Depth of field |
15~100mm |
|
Storage |
Supporting up to 64G TF card |
|
Battery |
Rechargeable 3.7v lithium battery |
|
Standby time |
>3h |
|
Languages |
English and other 10 languages |
|
Lighting |
3 levels brightness adjustable LED lights |
|
Waterproof grade |
Host IP55 and probe IP67 |
|
Image format |
JPG |
|
Video format |
AVI |
|
Product Size |
248*90*147mm |
|
Weight |
0.7Kg |
