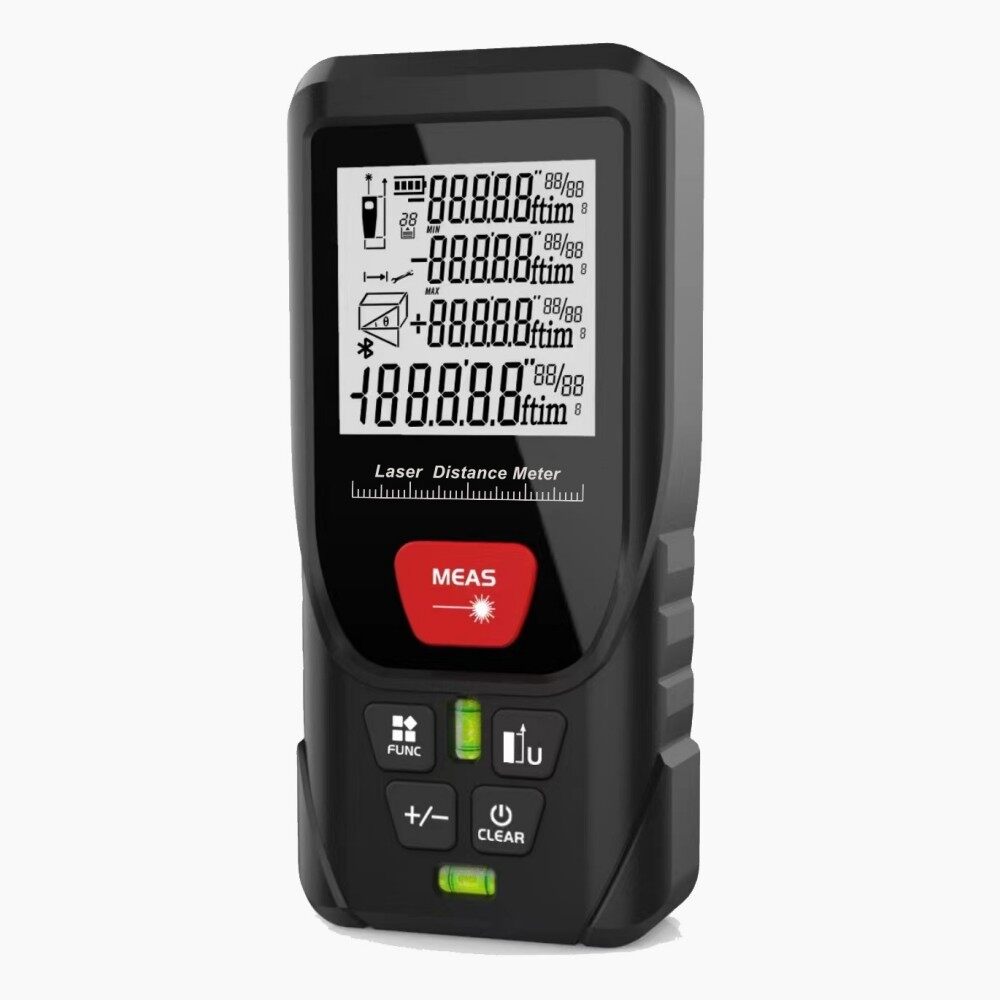

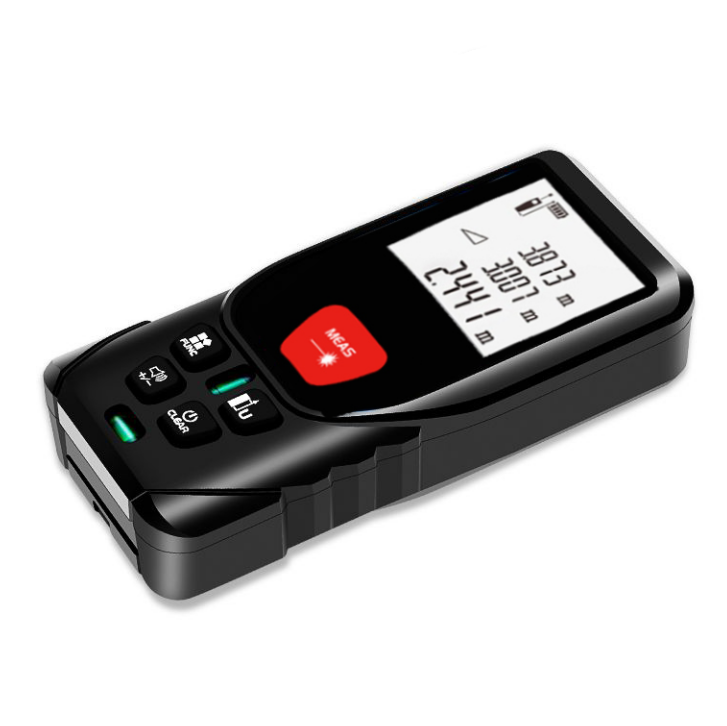

laser distance meter with double level bubbles and 50/70/100/120m range

Model No.: C50/70/100/120;

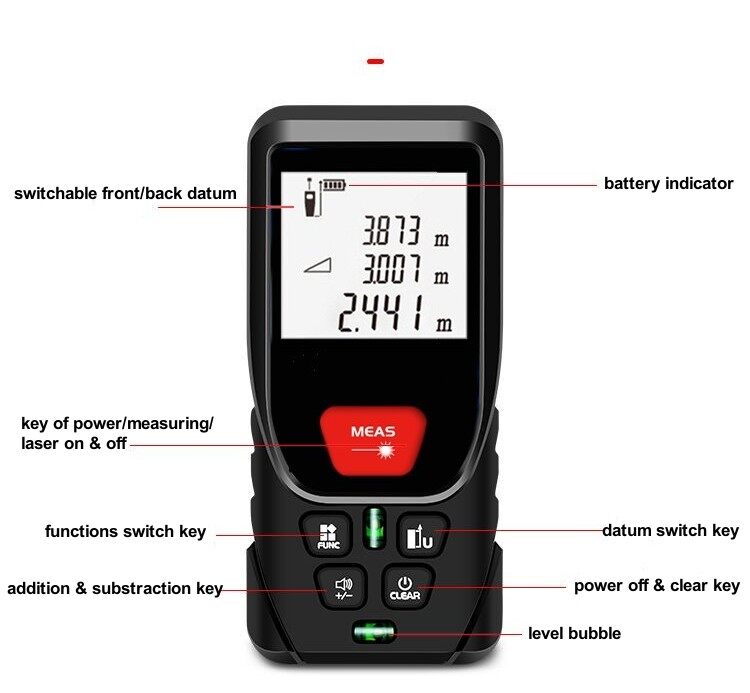

Features:



1. Light,compact and portable;

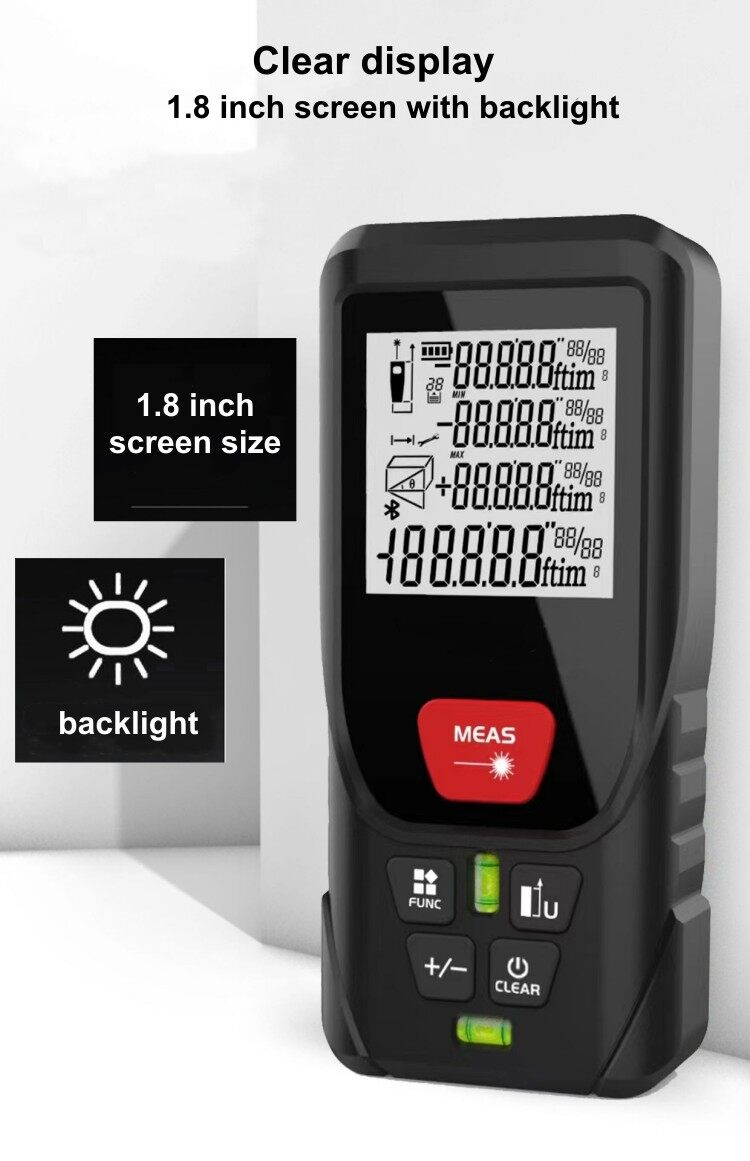

2. Clear display with backlight;

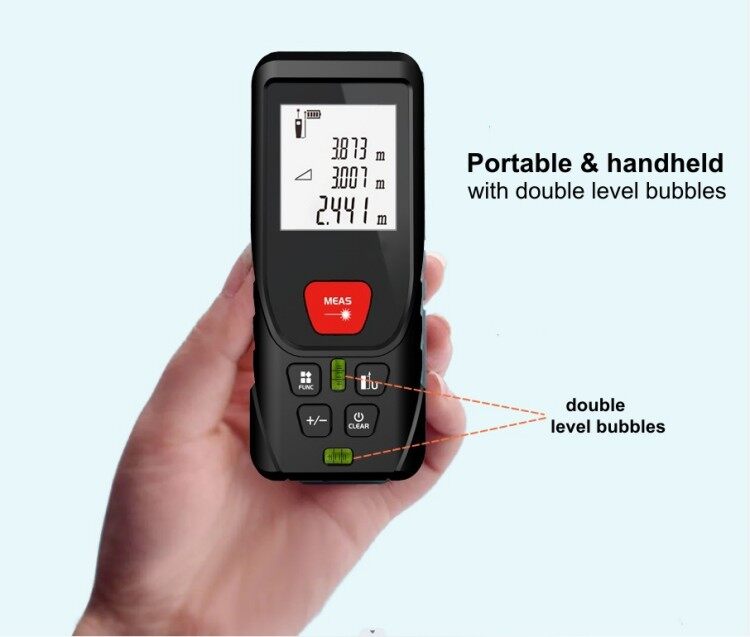

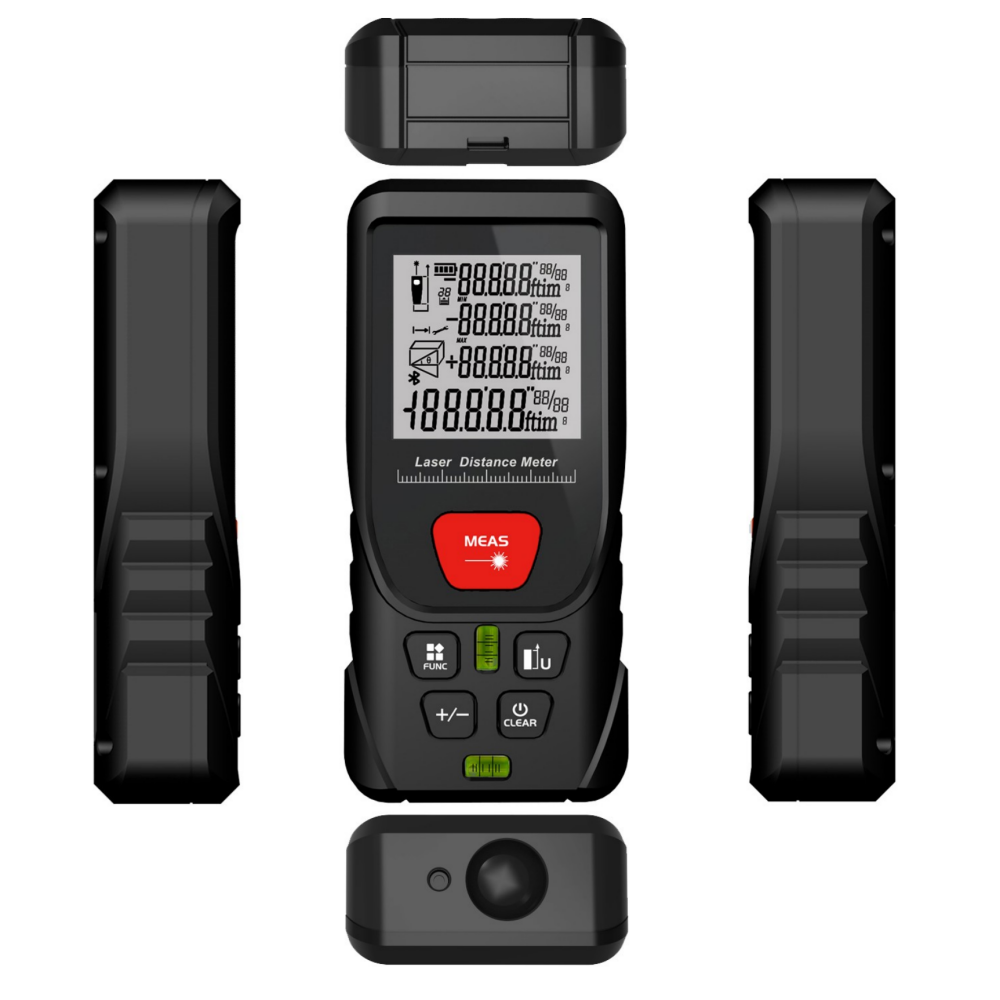

3. Double level bubbles;

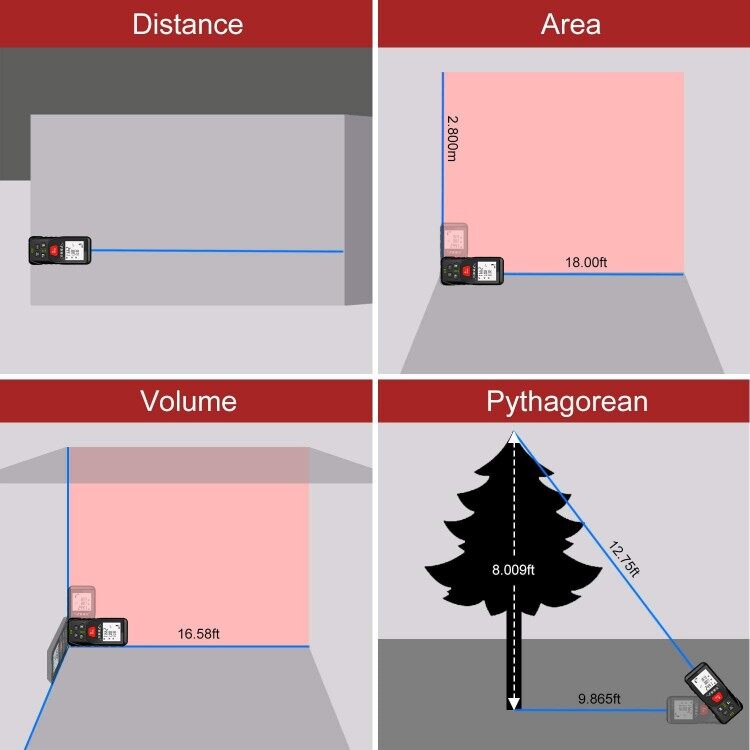

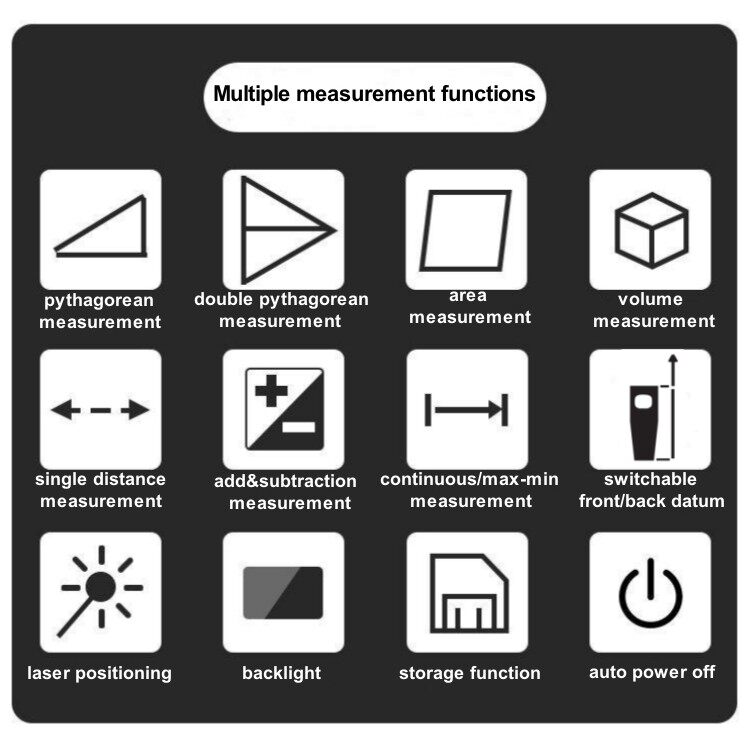

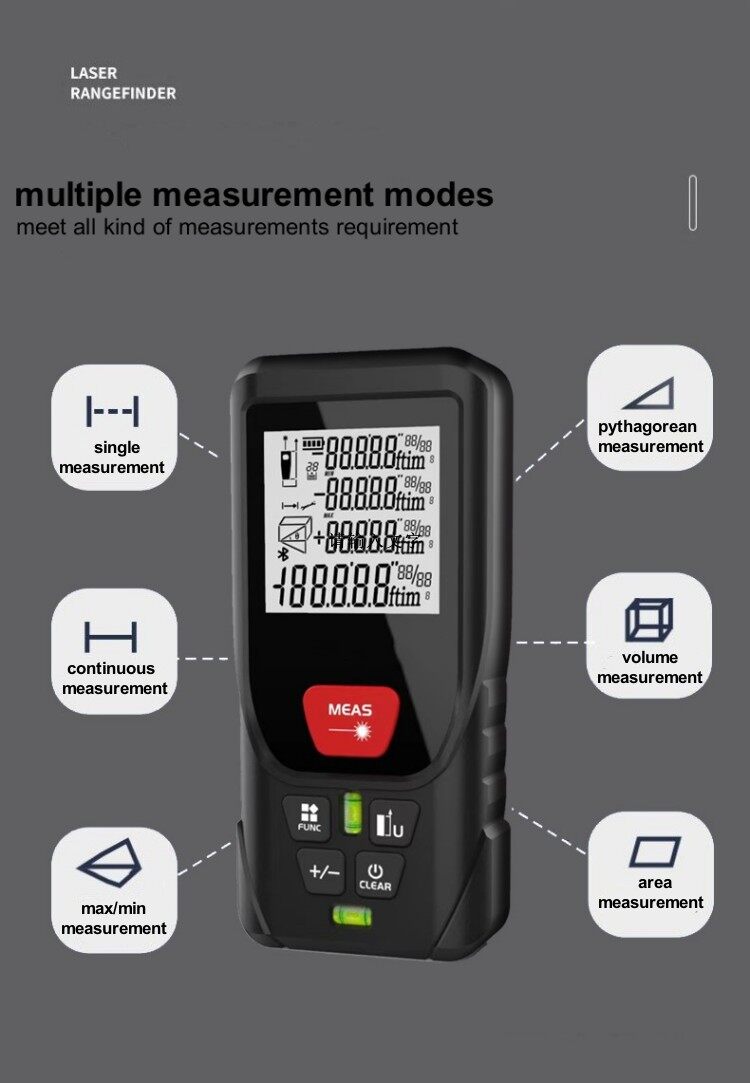

4. Multiple measuring function(measurement of single,continuous/max-min,addition&subtraction,area,volume and pythagorean measurement,etc )

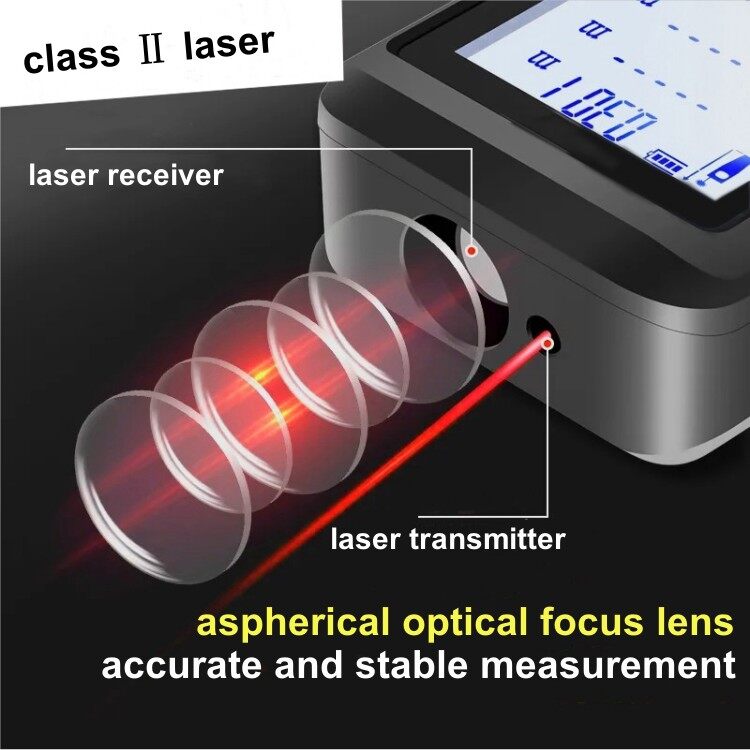

5. Class 2 laser positioning;

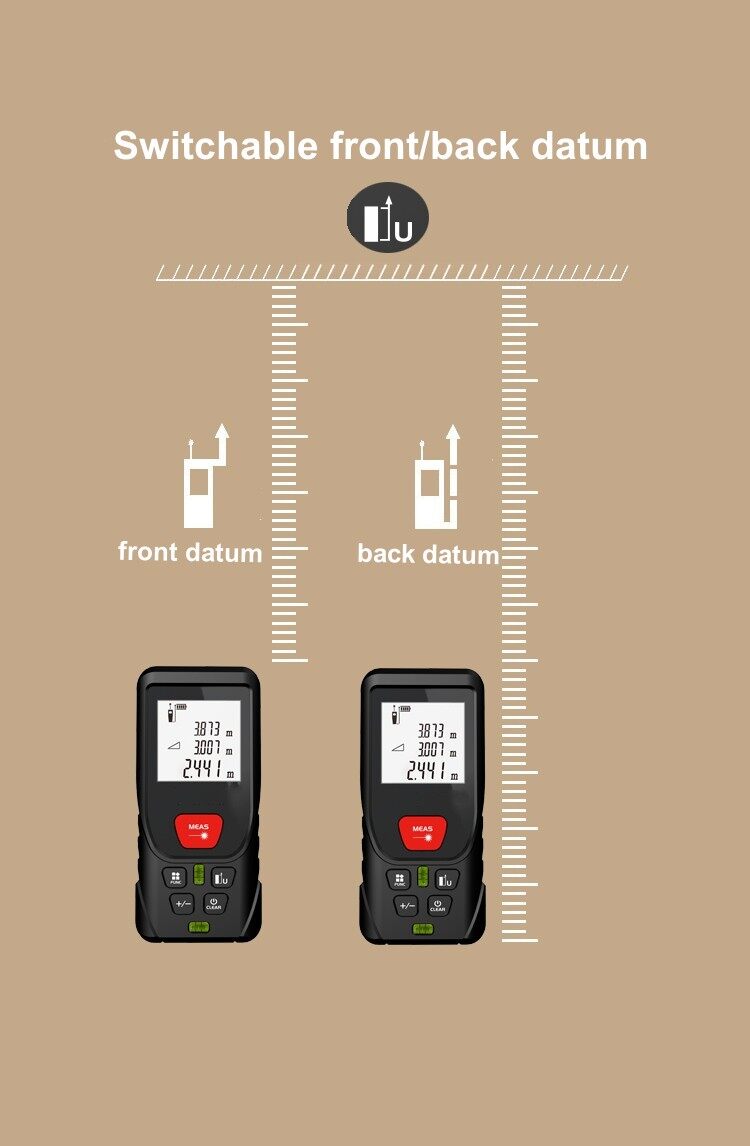

6. Switchable front datum and back datum;

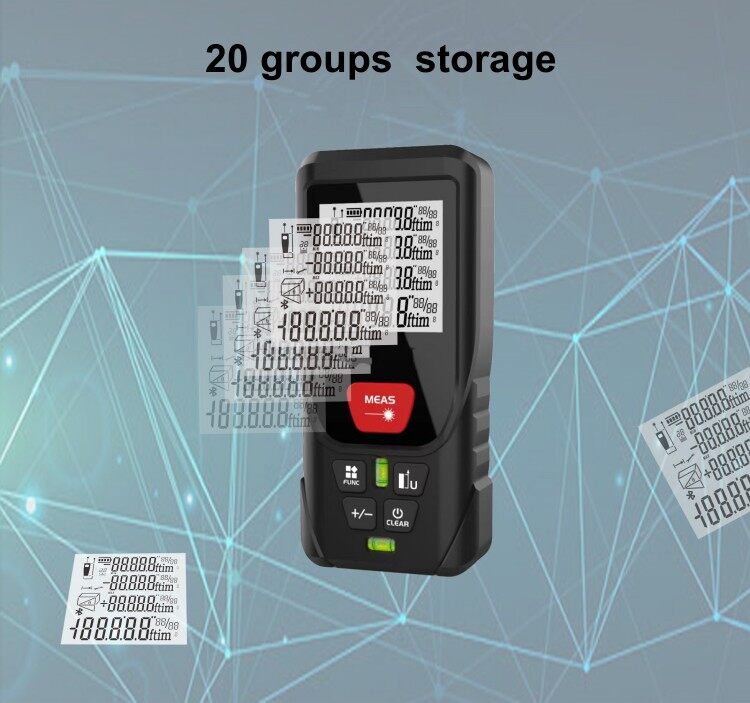

7. 20 Group data storage;



Overview and application:


This series laser distance meter are with 50m,70m,100m or 120m range. There are double leveling bubbles which enable you know the leveling state clearly and easily.


Multiple measurement functions are available for this laser distance meter,like measurement of single,continuous/max-min,addition,subtraction,area,volume and pythagorean,etc. 20 group data can be stored and it’s convenient for you to check tested data.


Technical Data:


Model

C50

C70

C100

C120

Measuring Range

0.05~50m

0.05~70m

0.05~100m

0.05~120m

Measuring Accuracy

±2mm

±2mm

±2mm

±2mm

Display Accuracy

1mm

Laser Class

Class Ⅱ

Laser Power

<1mW

Area/Volume Measurement

Pythagorean Measurement

Addition and Subtraction

Storage Function

Continuous Measurement

MAX/MIN Measurement

Multi-line Display

Waterproof Level

IP54

Operating Temperature Range

0~40°C

Storage Temperature Range

-10~50°C

Battery Life

5000 times measurements at full power

Battery

2*AAA batteries

Laser Auto-off Time

30 seconds later

Machine Auto-off Time

3 mins later




Image description:





Model

C50

C70

C100

C120

Measuring Range

0.05~50m

0.05~70m

0.05~100m

0.05~120m

Measuring Accuracy

±2mm

±2mm

±2mm

±2mm

Display Accuracy

1mm

Laser Class

Class Ⅱ

Laser Power

<1mW

Area/Volume Measurement

Pythagorean Measurement

Addition and Subtraction

Storage Function

Continuous Measurement

MAX/MIN Measurement

Multi-line Display

Waterproof Level

IP54

Operating Temperature Range

0~40°C

Storage Temperature Range

-10~50°C

Battery Life

5000 times measurements at full power

Battery

2*AAA batteries

Laser Auto-off Time

30 seconds later

Machine Auto-off Time

3 mins later
