nuclear radiation detector geiger counter

Detector

 48mm Geiger counter tube

Measuring range

Dose rate:0.08uSv/h~10mSv/h

Reaction speed

React within 10s and get stable values in 2 mins

Refresh frequency

1 second each time

Resolution

0.01uSv/h

Working environment

-10~50°C; humidity <95%RH without condensation

Battery capacity

400mah

Overview and application

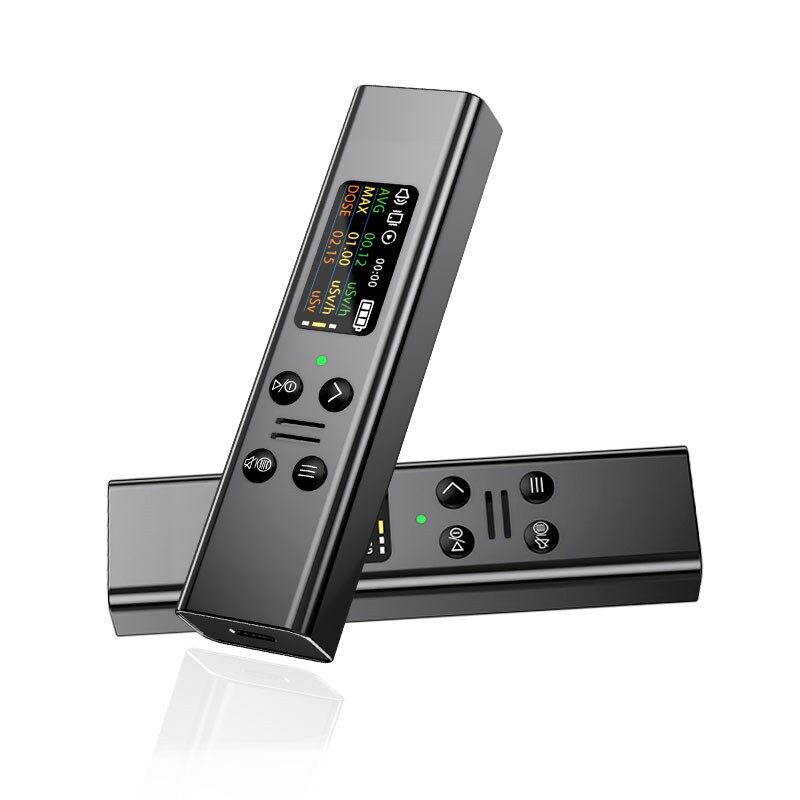

This nuclear radiation detector is a high-sensitivity X, Gamma and beta ray dosimeter with alarm. It uses an energy-compensated GM Geiger counter tube as sensor, which has the characteristics of high sensitivity, strong anti-interference ability and accurate measurement. Powerful microprocessor and TFT screen are adopted to realize easy operation. There are three modes for alarm, namely sound, flash and vibration, what’s more, the alarm threshold is adjustable.



The radiation have wide range and it can be used to detect radiation in home decoration radiation, irradiation processing enterprises, health and epidemic prevention, radiotherapy, nuclear power plants, import and export commodity inspection, building materials, petrochemical, geological census, scrap steel, industrial non-destructive testing and other ionizing radiation environment.

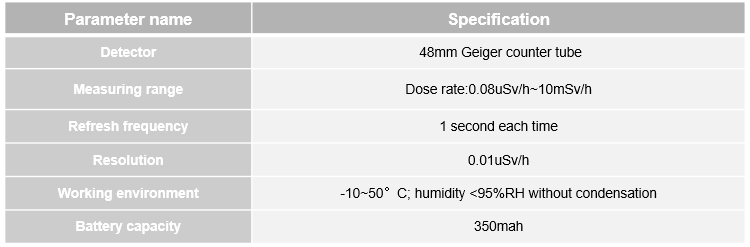

Technical data



Image description

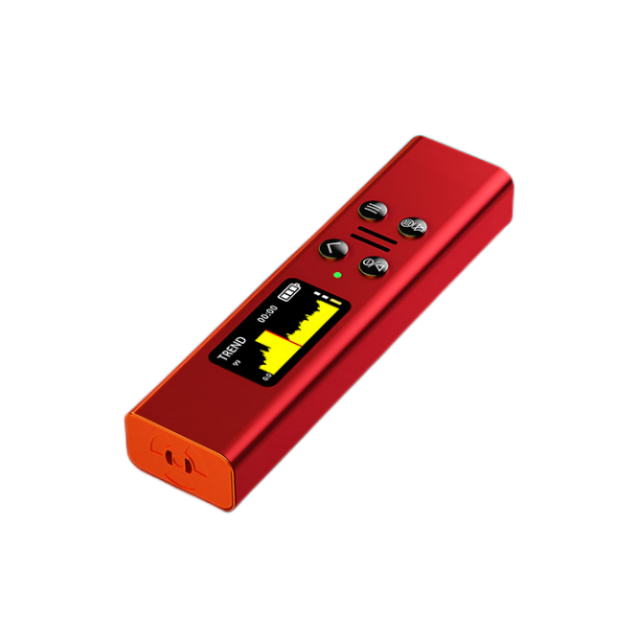

1.Fashionable and portable design with aluminum alloy shell;

2. High sensitivity Geiger-Mueller counter tube sensor;

3. Showing real-time, average, max value and historical value chart;

4.sound+flash+vibration multiple alarms and adjustable shreshold;

5. Simple operation and clear screen;
