laser rangefinder with electronic angle and 50m/70m/100m/120m range

Model No.: LDM-D50/70/100/120;

Features:

1.Portable and fashionable;

2.LCD-VA screen;

3.Electronic angle function;

4.Multiple measuring function(measurement of single,continuous/max-min,addition&subtraction,area,volume and pythagorean measurement,etc )

5.Switchable front benchmark and back benchmark;

6.Multiple adjustable units(m,ft,in,ft+in);

7.data storage of 99 group;

8.Auto power off of meter & laser

Inquiry

Overview and application:

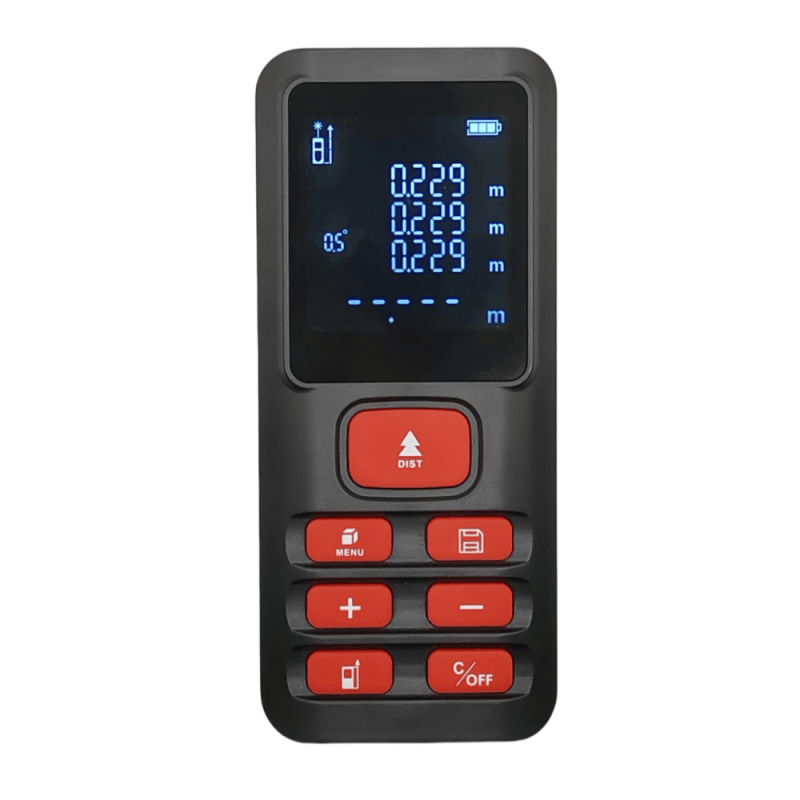

This series laser rangefinder are with 50m,70m,100m or 120m range. It’s a reliable and professional tool used in various distance measurement occasions. The LCD-VA screen make sure the clear display. It’s with electronic angle function which show you the real-time angle.

The measurement accuracy is ±2mm. What’s more,multiple measurement functions are available for this laser rangefinder,like measurement of single,continuous/max-min,addition,subtraction,area,volume and pythagorean,etc. Up to 99 data can be stored and it’s convenient for you to check tested data.

Technical Data:

Model	LDM-D50	LDM-D70	LDM-D100	LDM-D120
Measuring Range	0.05~40m	0.05~60m	0.05~100m	0.05~120m
Measuring Accuracy	±2mm
Distance Units	M,ft,in,ft+in
Area Units	㎡，ft²，in²
Laser Class	Class Ⅱ，<1mW
Laser type	620~690
Single measurement time	0.25s
Electronic Angle	√
Area/Volume Measurement	√
Pythagorean Measurement	√
Addition and Subtraction	√
Single & Continuous Measurement	√
MAX & MIN Measurement	√
Measurement benchmark switch	√
Data clearance	√
Battery status	√
Real-time angle display	√
Data storage	99 groups
Operating Temperature Range	0~40°C
Storage Temperature Range	-10~50°C
Battery	3*AAA batteries
Laser Auto-off Time	30 seconds later
Machine Auto-off Time	3 mins later
Size	1155025 mm
Weight	85g

Image description:

Model	LDM-D50	LDM-D70	LDM-D100	LDM-D120
Measuring Range	0.05~40m	0.05~60m	0.05~100m	0.05~120m
Measuring Accuracy	±2mm
Distance Units	M,ft,in,ft+in
Area Units	㎡，ft²，in²
Laser Class	Class Ⅱ，<1mW
Laser type	620~690
Single measurement time	0.25s
Electronic Angle	√
Area/Volume Measurement	√
Pythagorean Measurement	√
Addition and Subtraction	√
Single & Continuous Measurement	√
MAX & MIN Measurement	√
Measurement benchmark switch	√
Data clearance	√
Battery status	√
Real-time angle display	√
Data storage	99 groups
Operating Temperature Range	0~40°C
Storage Temperature Range	-10~50°C
Battery	3*AAA batteries
Laser Auto-off Time	30 seconds later
Machine Auto-off Time	3 mins later
Size	1155025 mm
Weight	85g
