Model No.: LDM-C 50/70/100/120;
Features:
1.Portable and user friendly;
2.LCD-VA screen;
3.Double leveling bubbles;
4.Multiple measuring function(measurement of single,continuous/max-min,addition&subtraction,area,volume and pythagorean measurement,etc );
5.Switchable front benchmark and back benchmark;
6.Multiple adjustable units(m,ft,in,ft+in);
7.data storage of 99 group;
8.Auto power off of meter & laser;
Overview and application:

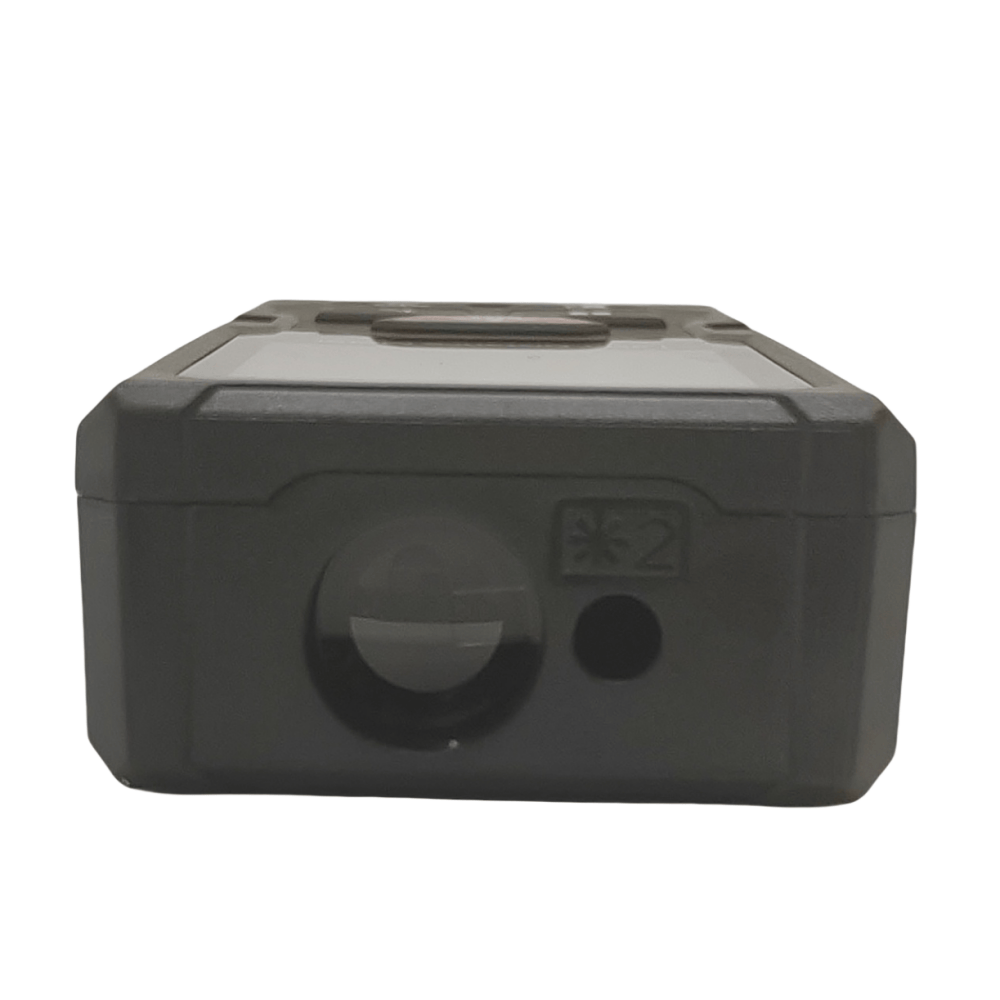

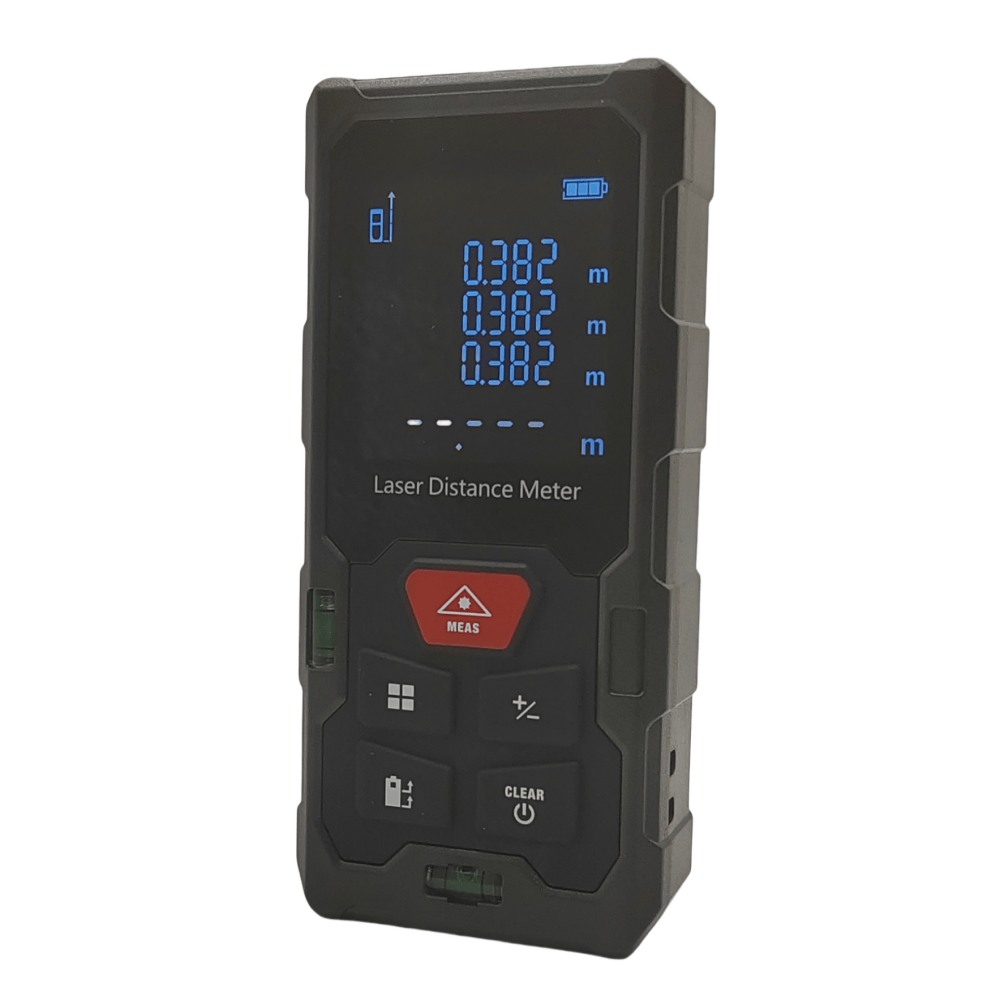

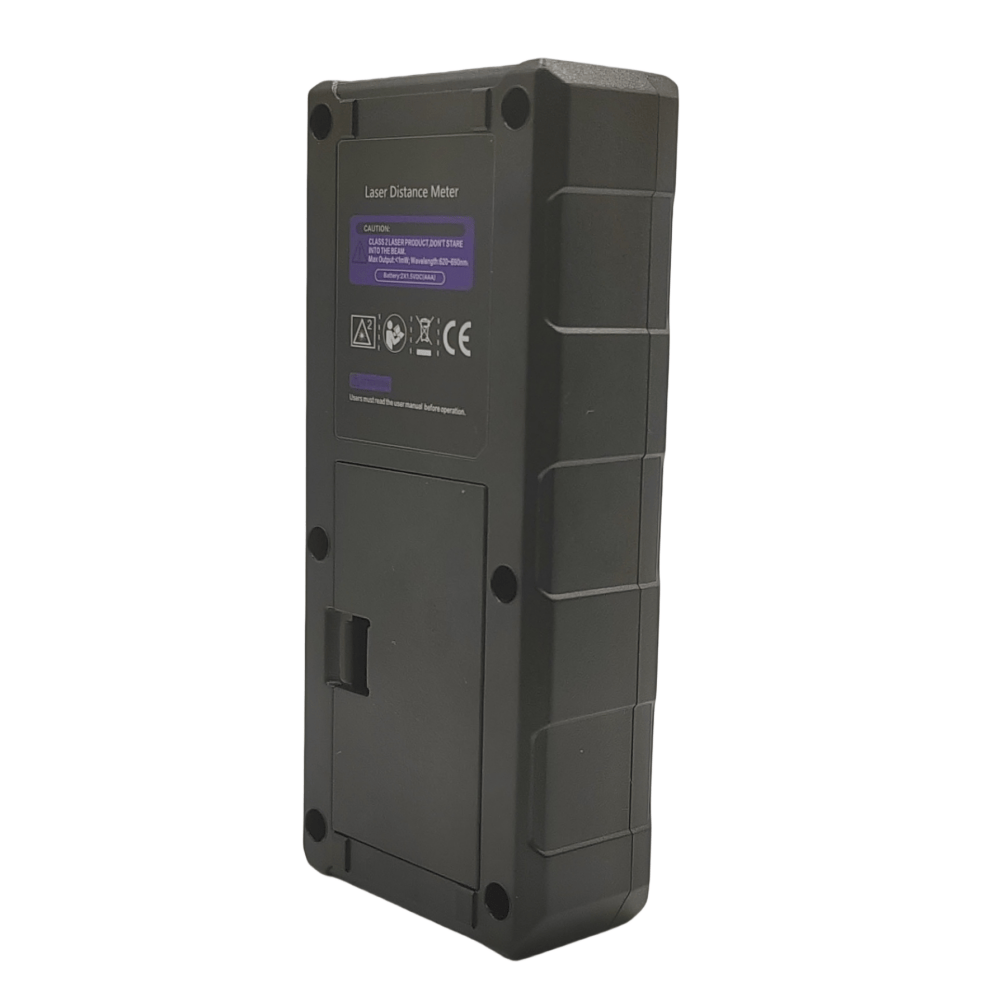

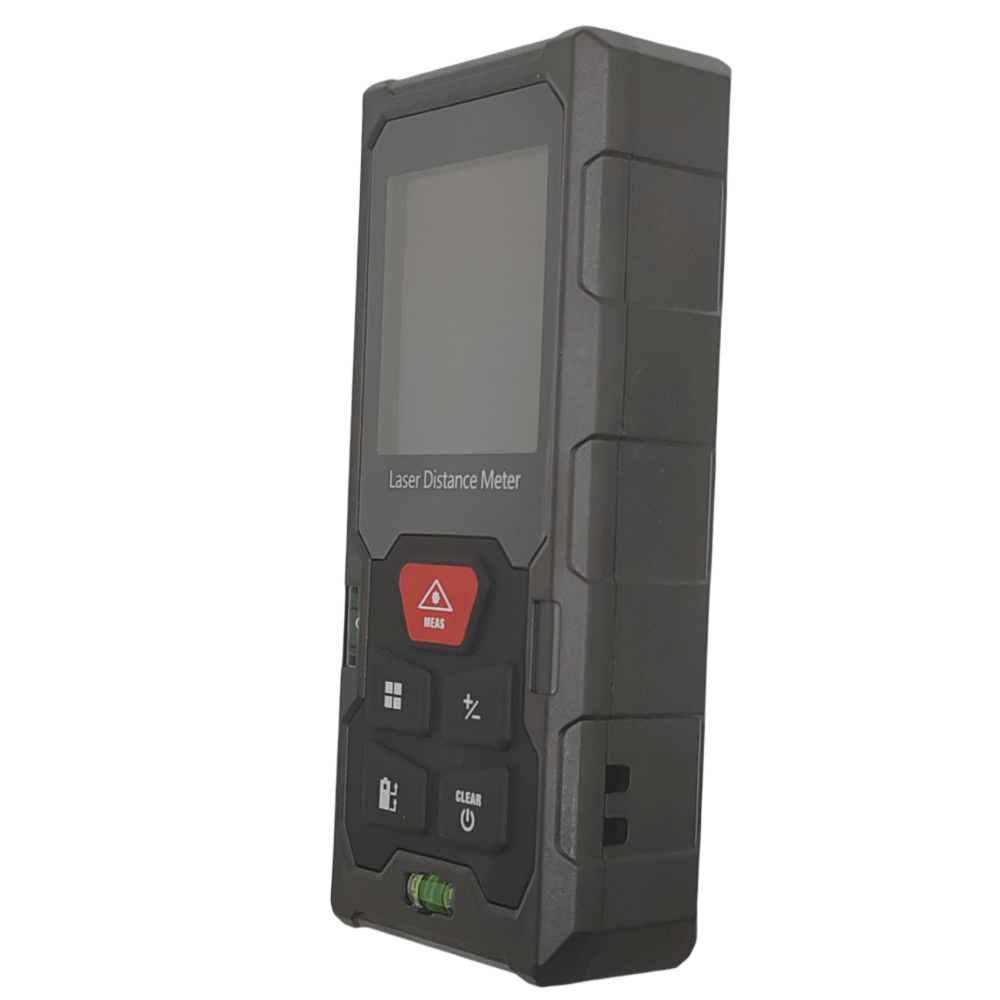

This series laser distance meter are with 50m,70m,100m or 120m range. It’s a reliable and professional tool used in various distance measurement occasions. The LCD-VA screen make sure the clear display.There are double leveling bubbles which enable you know the leveling state clearly and easily.
The measurement accuracy is ±2mm. What’s more,multiple measurement functions are available for this laser rangefinder,like measurement of single,continuous/max-min,addition,subtraction,area,volume and pythagorean,etc. Up to 99 data can be stored and it’s convenient for you to check tested data.
Technical Data:
|
Model |
LDM-C50 |
LDM-C70 |
LDM-C100 |
LDM-C120 |
|
Measuring Range |
0.05~50m |
0.05~70m |
0.05~100m |
0.05~120m |
|
Measuring Accuracy |
±2mm |
|||
|
Units |
M/ft/in/ft+in |
|||
|
Measuring time |
0.25s |
|||
|
Laser Class |
ClassⅡ,<1mw |
|||
|
Laser type |
620~690nm |
|||
|
Degree of protection |
IP54 |
|||
|
Distance/Area/Volume Measurement |
√ |
|||
|
Pythagorean Measurement |
√ |
|||
|
Addition and Subtraction |
√ |
|||
|
Continuous Measurement |
√ |
|||
|
MAX/MIN Measurement |
√ |
|||
|
Front/back benchmark |
√ |
|||
|
Display |
2 inch LCD-VA |
|||
|
Data storage |
99 groups |
|||
|
Operating Temperature Range |
0~40°C |
|||
|
Storage Temperature Range |
-10~50°C |
|||
|
Battery |
2*1.5V AAA batteries |
|||
|
Laser Auto-off Time |
30 seconds later |
|||
|
Machine Auto-off Time |
3 mins later |
|||
|
Size |
110*50*25 mm |
|||
|
Weight |
75g |
|||
