video endoscope camera with 1920*1080/1280*720 pixels,detachable screen & coiler and connection to phone or computer
video endoscope camera with 1920*1080/1280*720 pixels,detachable screen & coiler and connection to phone or computer

video endoscope camera with 1920*1080/1280*720 pixels,detachable screen & coiler and connection to phone or computer

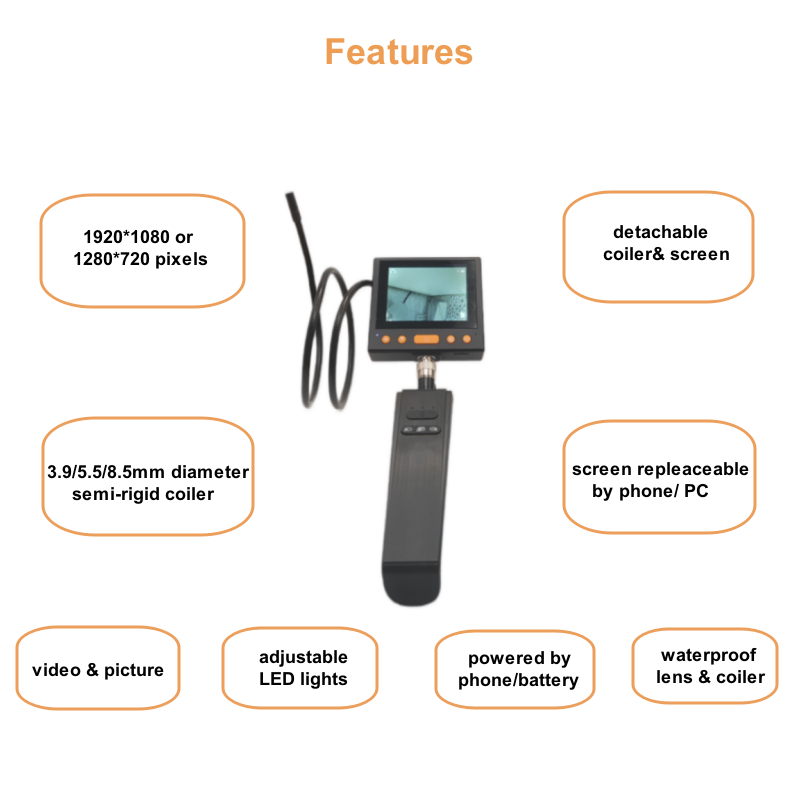

Features

1. 1920*1080/1280*720 pixels camera;

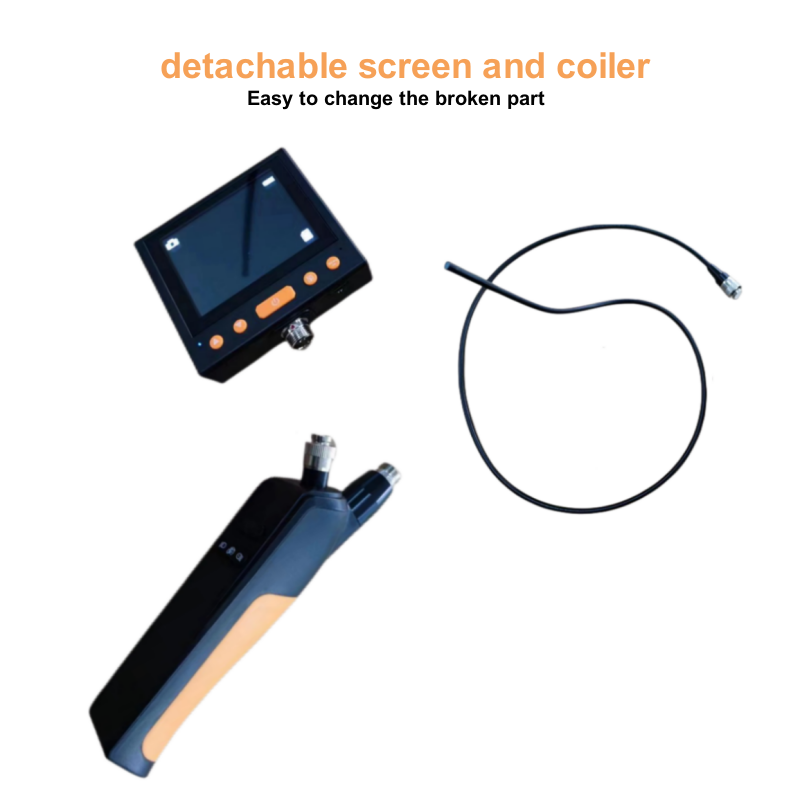

2. Detachable screen and coiler;

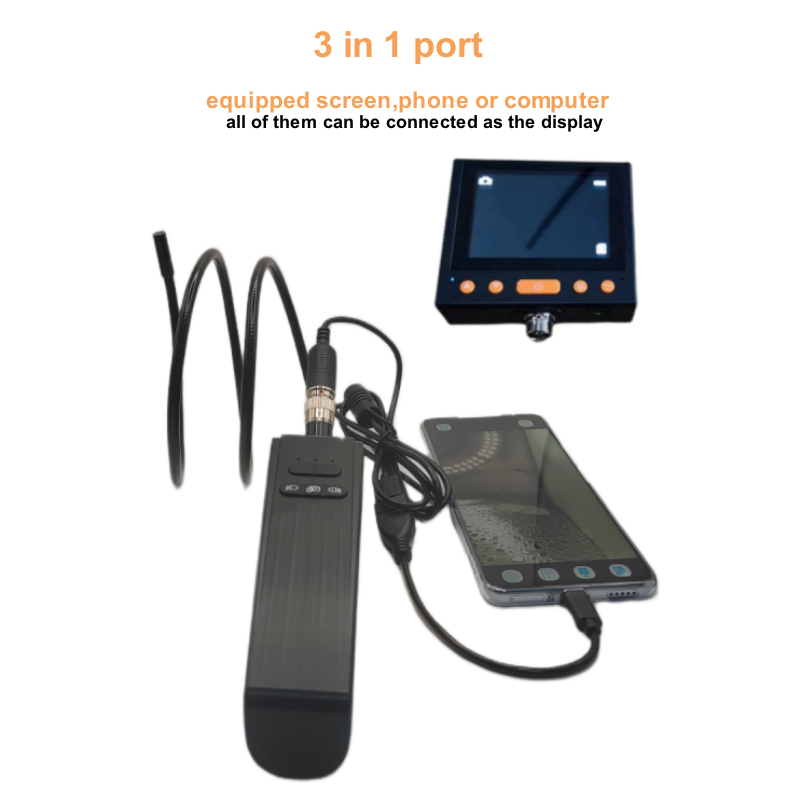

3. Instead of the equipped screen, phone/PC can be used for display;

4. When connected to phone or PC, it is powered by phone or PC;

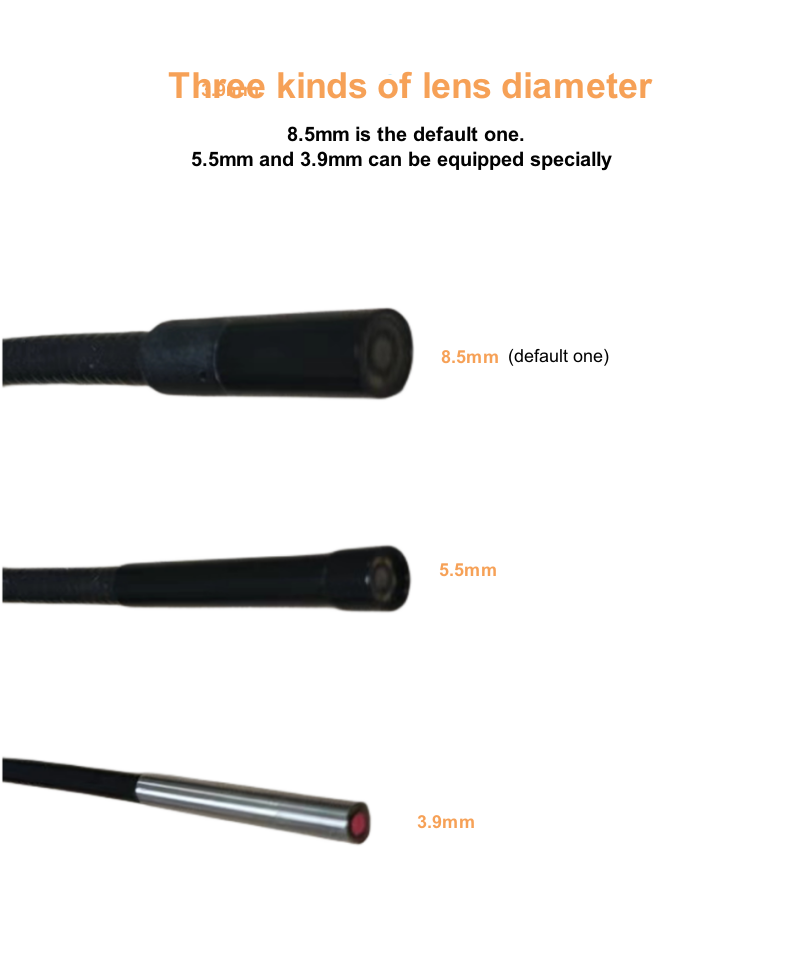

5. Lens diameter 8.5mm/3.9/5.5mm for options;

6. Capturing and storing pictures & videos;

7.  Semi-rigid coiler can be formed into any required shape;

8. Waterproof gooseneck(1m,1.5m,2m... for options);

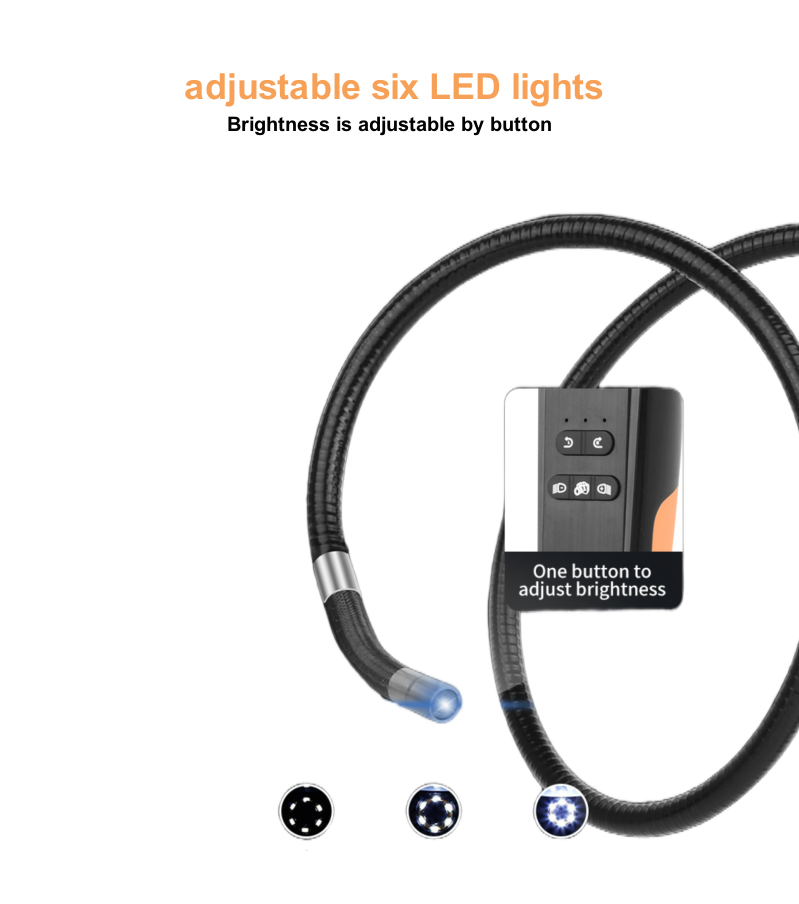

9. Adjustable LED lights on the camera;

Inquiry


Overview and application


This video endoscope camera is a utility class equipment with the function of real-time video viewing, video recording and picture capturing, etc... which is suitable for usage in narrow area and the area which cannot be observed by sight, such as vehicle repair, sewer inspection and machine maintenance, etc.



The equipped screen is detachable. Phone, tablet and PC can be taken as the display instead when connected by cable. When connected to phone or computer, it’s powered by phone or computer.Plus,the coiler is also detachable. All of these make this endoscope camera special. More information? You can check features and details below.

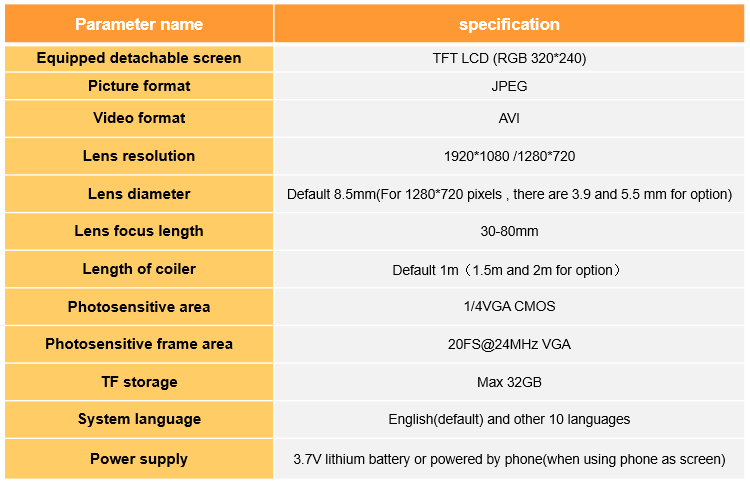

Technical data





Image description









Parameters table


Equipped detachable screen

TFT LCD (RGB 320*240)

Picture format

JPEG

Video format

AVI

Lens resolution

1920*1080 /1280*720

Lens diameter

Default 8.5mm(For 1280*720 pixels , there are 3.9 and 5.5 mm for option)

Lens focus length

30-80mm

Length of coiler

Default 1m（1.5m and 2m for option）

Photosensitive area

1/4VGA CMOS

Photosensitive frame area

20FS@24MHz VGA

TF storage

Max 32GB

System language

English(default) and other 10 languages

Power supply

3.7V lithium battery or powered by phone(when using phone as screen)
